MELCloud in Gladys: control your Mitsubishi air conditioning

MELCloud is Mitsubishi Electric's cloud service that allows you to control your Mitsubishi air conditioning units and heat pumps remotely. With this integration, you can control your Mitsubishi AC directly from Gladys Assistant, and use it in your automations.

Prerequisites​

  • A Mitsubishi air conditioning unit compatible with MELCloud
  • A MELCloud account (create one at app.melcloud.com)
  • Your AC unit must be configured and working in the MELCloud app

Connect MELCloud to Gladys​

Go to Integrations -> MELCloud in Gladys.

Step 1: Configure your MELCloud account​

In the Setup tab, enter your MELCloud credentials:

  • Email: Your MELCloud account email
  • Password: Your MELCloud account password

Click on Save configuration to connect Gladys to your MELCloud account.

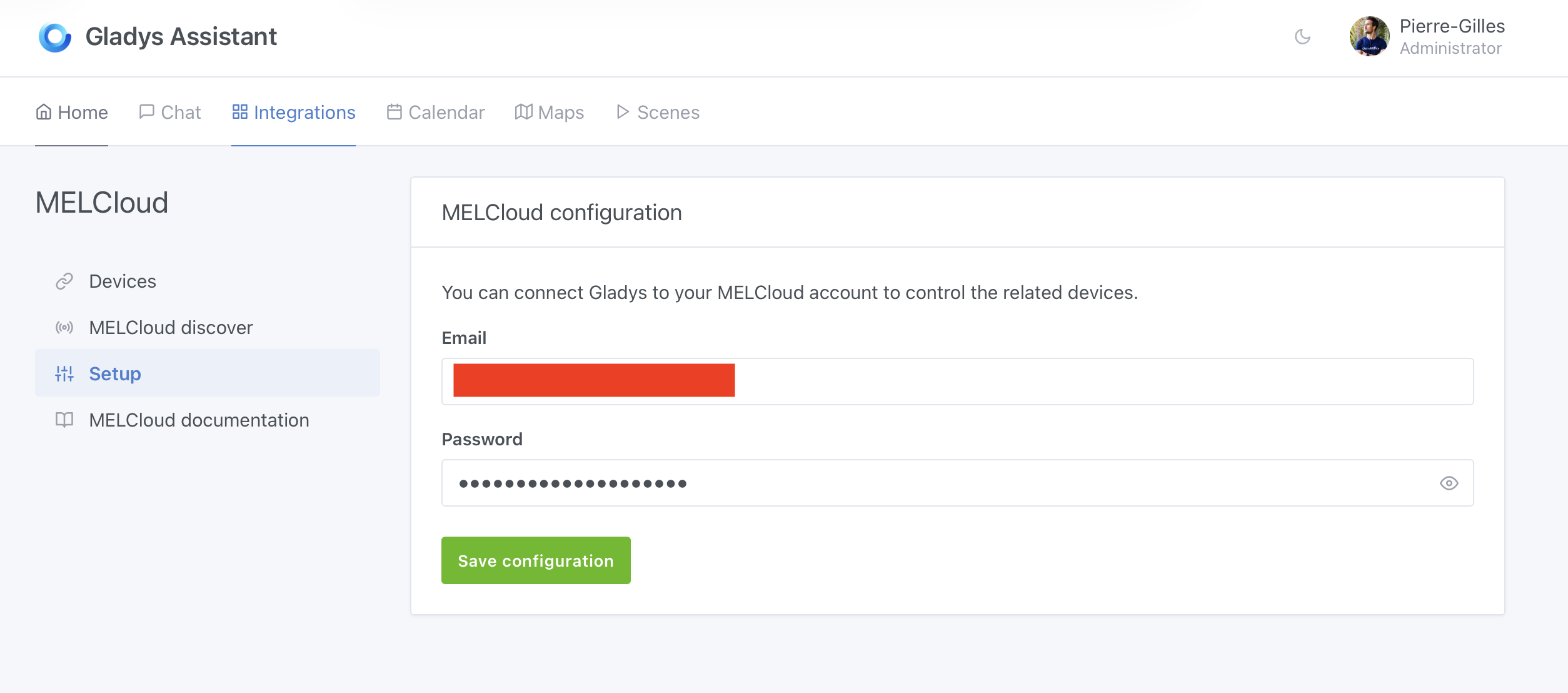

MELCloud configuration

Step 2: Discover and add your devices​

Once connected, go to the MELCloud discover tab to see all your available devices.

For each device you want to add to Gladys:

  1. Select the room where the device is located
  2. Click on Save to add the device to Gladys

The device will appear in the Devices tab with its features:

  • Switch (On/Off): Turn the AC on or off
  • Mode: Change the operating mode (cooling, heating, etc.)
  • Target temperature: Set the desired temperature

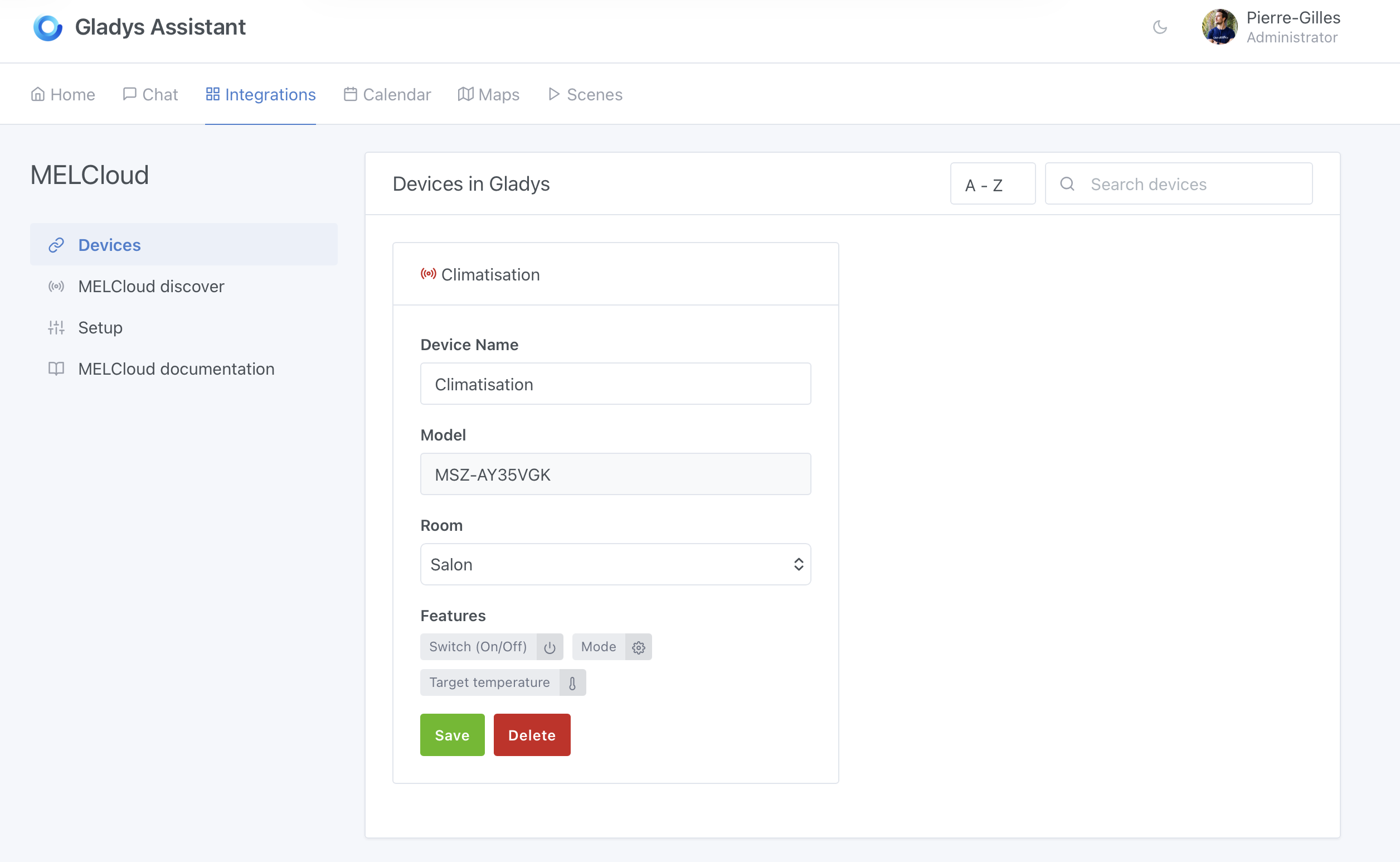

Add MELCloud device

Step 3: Add to your dashboard​

To control your AC from the dashboard, go to Dashboard and edit your dashboard to add the device features you want to display.

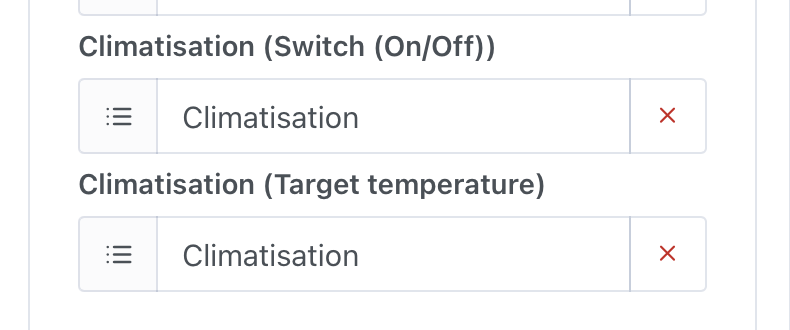

Configure dashboard

Step 4: Control your AC​

You can now control your Mitsubishi AC directly from the Gladys dashboard:

  • Toggle the AC on/off
  • Adjust the target temperature

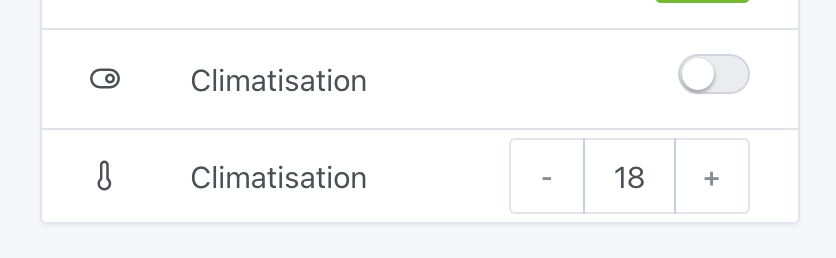

Control AC

Using in scenes​

You can also use your MELCloud devices in Gladys scenes to automate your air conditioning. For example:

  • Turn on the AC when the temperature rises above a certain threshold
  • Turn off the AC when you leave home
  • Set a specific temperature at a scheduled time

Frequently asked questions​

What is MELCloud?​

MELCloud is Mitsubishi Electric's cloud service used to control compatible Mitsubishi air conditioning units and heat pumps from a phone or computer. The Gladys MELCloud integration connects to that service so you can control the same units from Gladys and use them in your home automations.

Can I control my Mitsubishi air conditioning with Gladys?​

Yes. Once MELCloud is connected, Gladys exposes your Mitsubishi units with their main features: switch them on or off, change the mode (cooling, heating, etc.) and set the target temperature, from the dashboard, the chat or a scene.

Can I automate my Mitsubishi AC in scenes?​

Yes. MELCloud devices can be used in Gladys scenes: for example turn the AC on when the temperature rises above a threshold, turn it off when everyone leaves home, or set a specific temperature at a scheduled time.

My devices are not appearing​

Make sure your devices are properly configured in the MELCloud app and that you can control them from there. Then try refreshing the discovery in Gladys.

Connection issues​

If you have connection issues, verify that:

  • Your MELCloud credentials are correct
  • Your MELCloud account is active
  • You have internet connectivity

If you have any questions, ask on the forum.
